EVE – EMPURON VISUAL EFFICIENCY

Support DIN EN ISO 50001 | 16247 intelligently.
Use energy efficiently and reduce consumption.

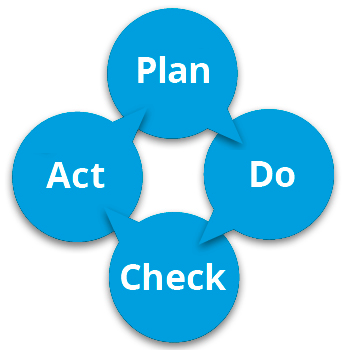

Plan Do Check Act

Using EVE - the manufacturer-independent energy management solution - industries and real estates can determine exactly, how much energy is used and how much has been saved at what location. Nice to know how the past was - self-learning prediction functions allow proactive intervention: to diagnose for example, how to avoid peak loads, but also to detect machine failures.

With EVE and its comprehensive platform the event-reporting transports the information with appropriate evaluations immediately to the configured mobile devices.

EVE 2.X - SUPPORT BASE FUNCTIONS IN THE ENERGY MANAGEMENT

• Analysis according to DIN EN ISO 50001 | 12647
• Prediction function leading to alarms for disturbances and limit violations
• Intelligence by self adaptive technology (Artificial Neural Network)
• Robust base system including 32 or 128 tags

EVE 10.X - SUPPORT AND AUTOMATE DISTRIBUTED ENERGY MANAGEMENT BY WELL-AIMED REDUNDANCY FUNCTIONS

• Distribute subsystems and central systems with redundancy functions
• Provide energy control desks with real-time functionality
• Integrate tablet computers with suprvision functionality

SUPPORT BY EXTENDED PORTAL FUNCTIONS

• Support staff using portal functions: WIKI, calenders and search functions
• Management of 50001 | 16247 documents

OPERATIONAL AREAS OF EVE 2.X AND 10.X

Industrial companies - EVE INDUSTRY

The efficiency module of EVE is based on sensors, measuring devices, gateways and meters. Thus, for power consumption of equipments can be combined with additional information, such as temperature, humidity and others. Limits are monitored and the artificial neural network looks for anomalies in the industrial process and calculates their energy impact.

Real Estates - EVE MONITORING

As with industrial companies measured and metered values of the different parts of the building and the installed devices are added. With the function modules for refrigeration, compressed air, the EVE approach provides accurate conclusions about energy improvement opportunities in the property. Thanks to EVE the property appears as an "open book". Characteristics shown by the EVE technology provide important insights.

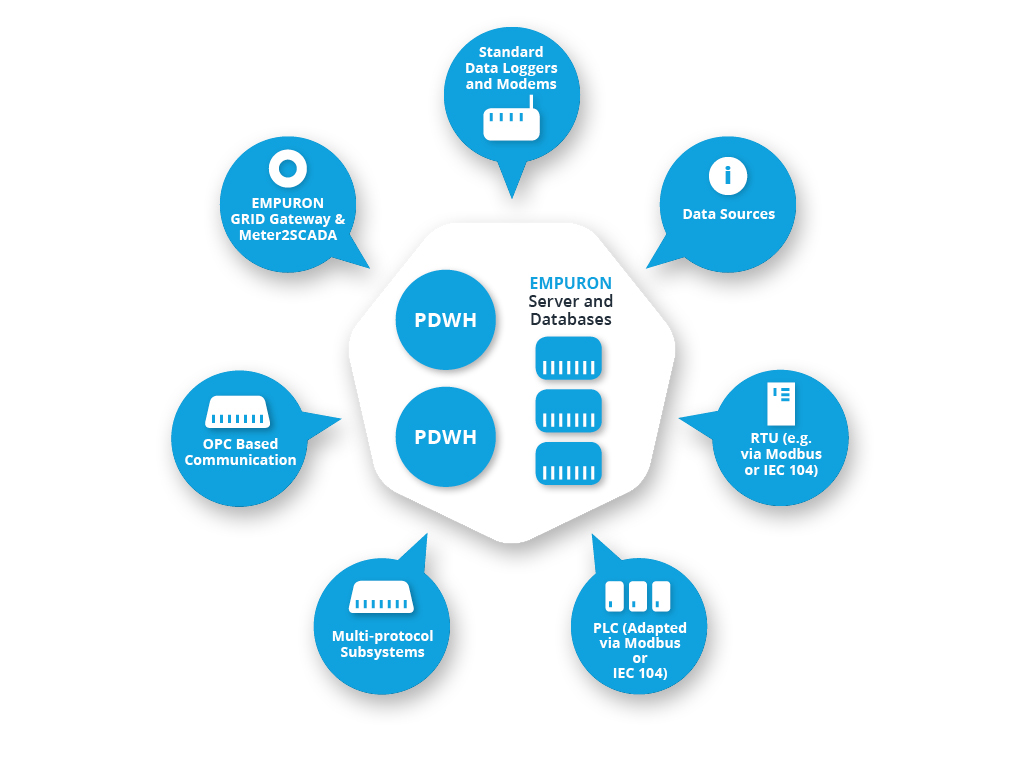

EVE - EMPURON VISUAL ENERGY Integration

EVE is based on the comprehensive EMPURON integration platform. Interface modules and hardware components are designed to make information available uniformly and to adapt when differencies in the data sets occurr.

EVE - EMPURON VISUAL ENERGY Integration

EVE is based on the comprehensive EMPURON integration platform. Interface modules and hardware components are designed to make information available uniformly and to adapt when differencies in the data sets occurr.

Protocolls

IEC 61850, 101, 102 103, 104, Modbus RTU/TCP, SPA, HART, Profibus, DNP3, NEO, FINS, DLMS, IEC 62056-21 (IEC 1107), KNX, OPC, Zigbee, Zwave, CAN, BACnet, SNMP, HTTP

ETL Access

XML, CSV, XLS, FTP, LDAP, JSON, WSDL, MDM, HIVE, MS-SQL, Netezza, ORACLE, ParAccel, Teradata, Vertica und andere.

Manufacturer Adaptors

Siemens SINAUT Spectrum®, Siemens HFDORA, Siemens HIS, Siemens Power™

EVE INtegration

Functional Overview EMPURON EVE

General functionality

  • Parameterization System using to a big extend User Interfaces
  • User data access
  • Group data access
  • Data filter definition
  • Access rights definition
  • Alarming functionality (SMS and automatic voice calls on demand)
  • KPI definition freely adjustable
  • User support by using wizards for evaluation and calculation engine
  • Reporting capability
  • Adapters for manufacturer hardware
  • Operation on external time schedule formats
  • Powerful scheduler for automation of system functionality

Data Warehousing

  • Data management system
  • Specialized database structures for high resolution time series
  • Standard time series cycles  1 minute ... 15 minutes  up to yearly cycles
  • High resolution time series (below one minute)
  • Time stamps according to international standards
  • Dynamic calculations on time series with free definition
  • Big data capability in the time series, unlimited data space with stable long term response time in online database
  • Free address scheme between 1 and 10 address steps according to data sources
  • Standard address scheme  Siemens Spectrum Power per default
  • Inherent space optimization in the data warehouse
  • Easy data integration by automatic data definition
  • Various data types, BLOBs (Binary Large OBjects)

Display

  • Displays in expert mode
  • Browser Displays
  • Dashboards
  • Portal functionality for energy communities  or locations

Energy Management

  • Optimisation functionality
  • Energy data calculations freely definable (standard scheme will be defined at commissioning)
  • Metering subsystem
  • Battery optimization system for load control
  • Data quality analysis and correction
  • Consumption ans generation forecast based on AI
  • Data Analysis based on AI
  • Import for  energy contractual data (suppliers)
  • Functionality for analysis of contractual energy provision
  • Import of energy schedules
  • Automatic unit conversion

Control

  • Transfer of setpoints
  • Control using standard automation protocols - inventory-friendly access
  • Introduction using hardware subsystems, RTU etc.
  • Multi protocol subsystems can be provided by EMPURON

Data Interfaces

  • Multi-Protocol Interfaces
  • Control center interfaces for Siemens Spectrum Power 4x, 7x and other SCADA systems
  • Various importers and exporters to be connected to the EVE scheduler
